Global H-alpha Network

SEL EVENT # 7320 in NOAA AR 2403
Date: 2015, Aug 24
Start Time 1949 UT; Max Time 1953 UT; End Time 1957 UT
Coordinates: S14W01
Flare type: X-ray flare and Optical flare observed in H-alpha
Additional: Several eruptive centers
GOES X-ray Class: C1.2 ( Integrated flux from start to end: 4.2E-04 )
Optical: SF

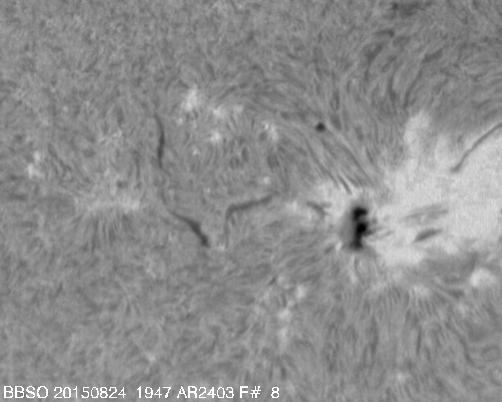

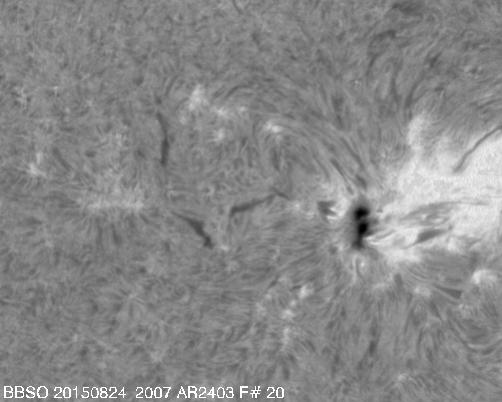

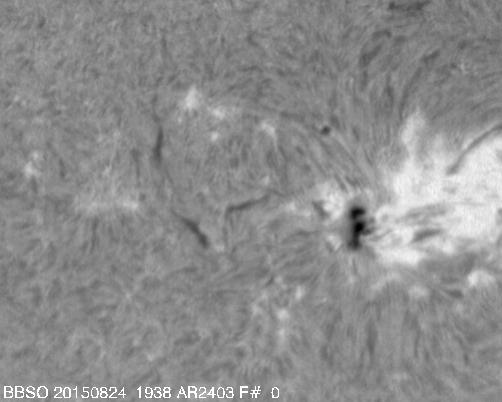

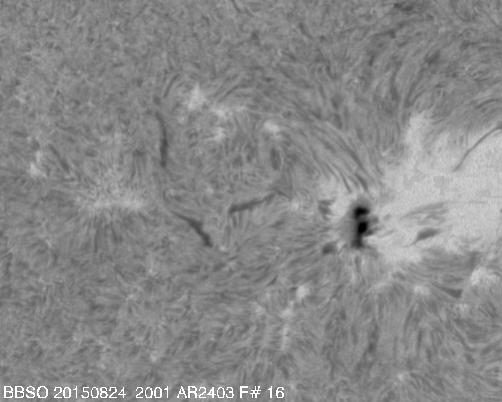

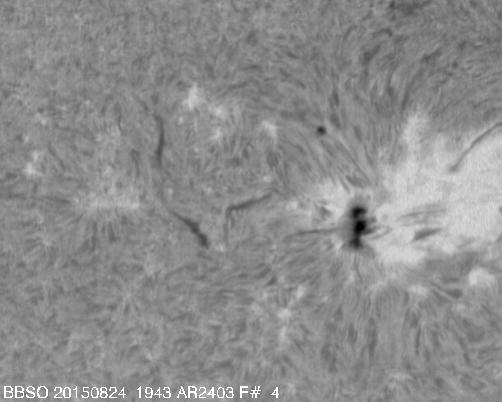

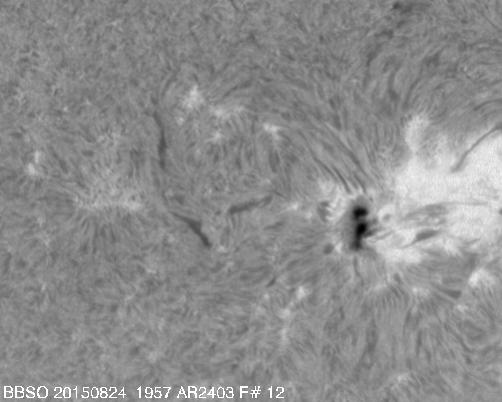

Below are an MPEG movie for this event, GOES flux plot and data file and several snapshots.


Automaticaly Generated on Mon Aug 24 20:03:08 2015
Please, send questions and comments to Vasyl Yurchyshyn
