Global H-alpha Network

SEL EVENT # 8450 in NOAA AR 9714
Date: 2001, Dec 01
Start Time 1653 UT; Max Time 1656 UT; End Time 1658 UT
Coordinates: S08W80
Flare type: X-ray flare and Optical flare observed in H-alpha
Additional:
GOES X-ray Class: M2.9 ( Integrated flux from start to end: 8.0E-03 )
Optical: SF

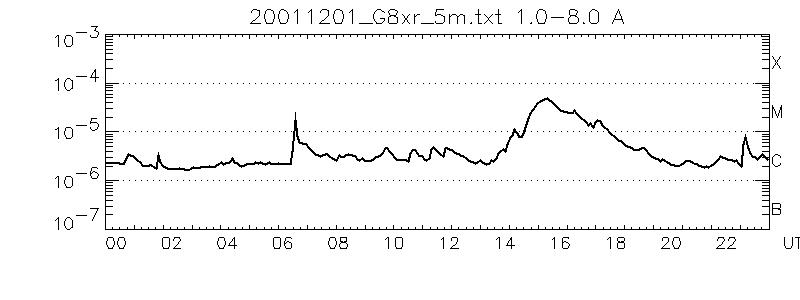

There are an MPEG movie for this event, a GOES flux plot and several snapshots.


Automaticaly Generated on Sat Dec 1 19:33:58 2001
Please, send questions and comments to Vasyl Yurchyshyn
