Global H-alpha Network

SEL EVENT # 8080 in NOAA AR 0646
Date: 2004, Jul 13
Start Time 1924 UT; Max Time 1932 UT; End Time 1936 UT
Coordinates: N13W56
Flare type: X-ray flare and Optical flare observed in H-alpha
Additional: Several eruptive centers
GOES X-ray Class: M6.2 ( Integrated flux from start to end: 1.9E-02 )
Optical: 1B

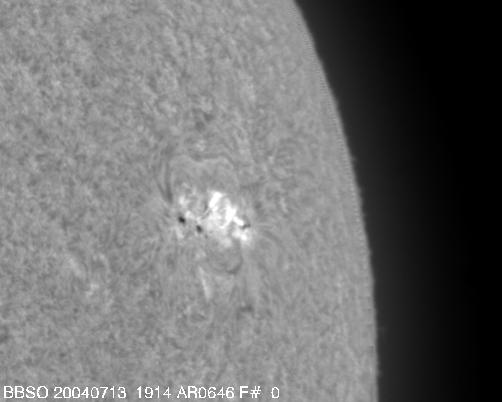

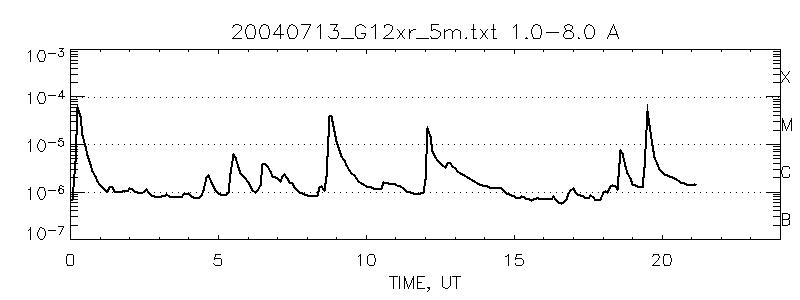

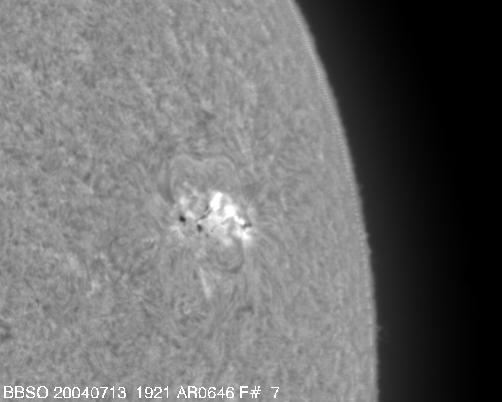

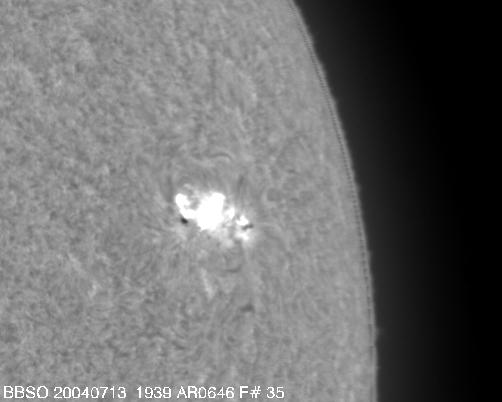

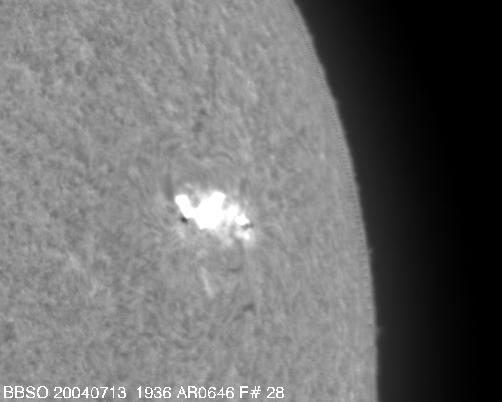

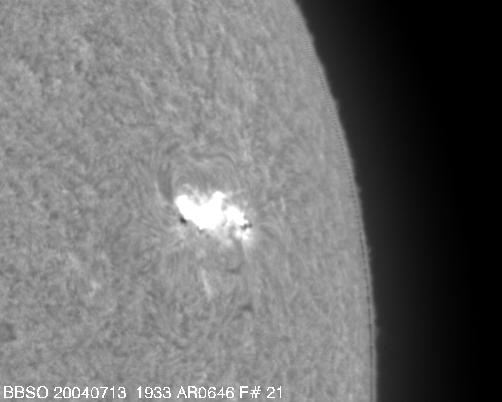

There are an MPEG movie for this event, a GOES flux plot and several snapshots.


Automaticaly Generated on Tue Jul 13 14:37:08 2004
Please, send questions and comments to Vasyl Yurchyshyn
