Global H-alpha Network

SEL EVENT # 2940 in NOAA AR 0720
Date: 2005, Jan 15
Start Time 1650 UT; Max Time 1657 UT; End Time 1702 UT
Coordinates: N14W01
Flare type: X-ray flare and Optical flare observed in H-alpha
Additional: Several eruptive centers
GOES X-ray Class: C8.0 ( Integrated flux from start to end: 4.5E-03 )
Optical: SF

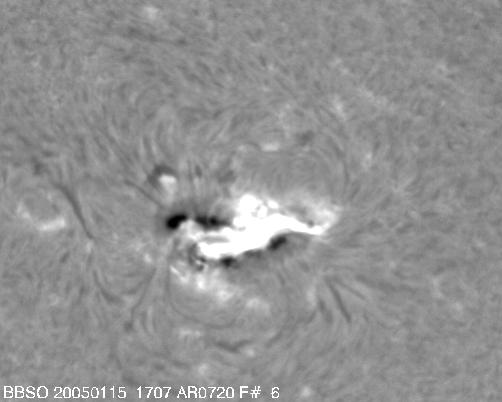

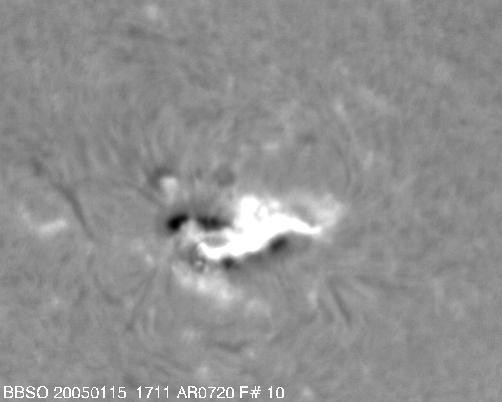

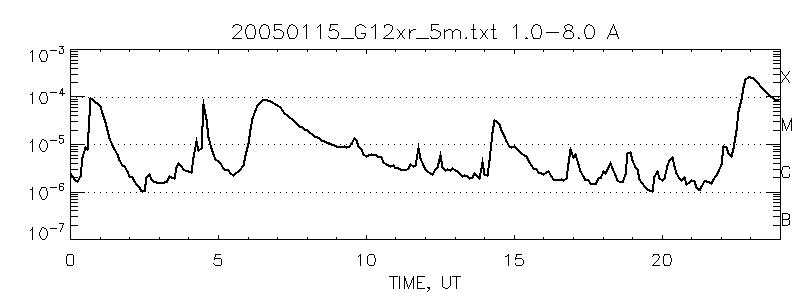

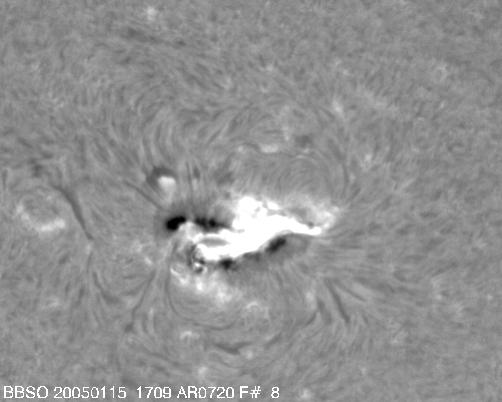

There are an MPEG movie for this event, a GOES flux plot and several snapshots.


Automaticaly Generated on Sat Jan 15 19:06:11 2005
Please, send questions and comments to Vasyl Yurchyshyn
