Global H-alpha Network

SEL EVENT # 8660 in NOAA AR 0759
Date: 2005, May 11
Start Time 1656 UT; Max Time 1700 UT; End Time 1705 UT
Coordinates: N13E37
Flare type: X-ray flare and Optical flare observed in H-alpha
Additional: Several eruptive centers
GOES X-ray Class: C6.9 ( Integrated flux from start to end: 2.0E-03 )
Optical: SF

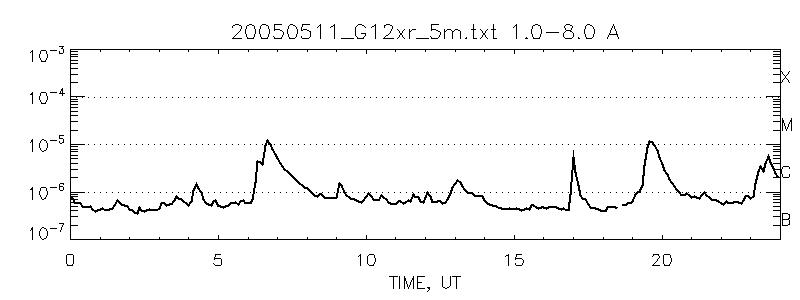

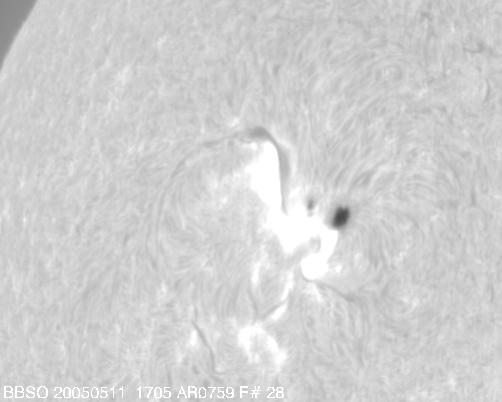

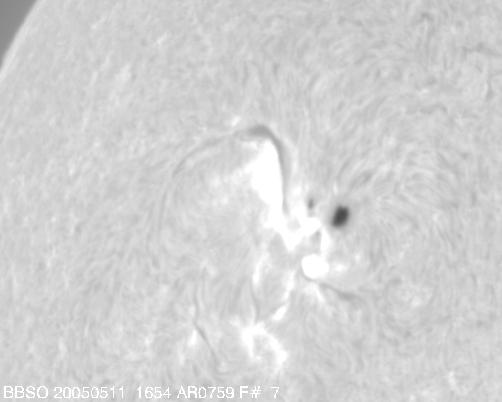

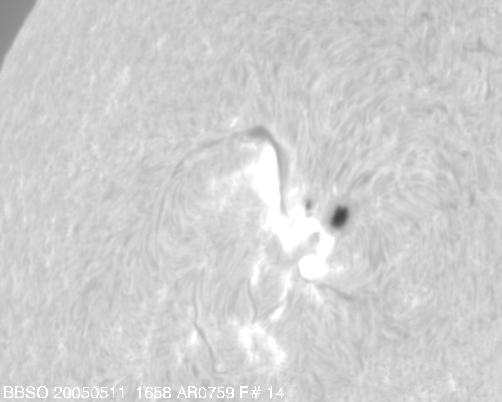

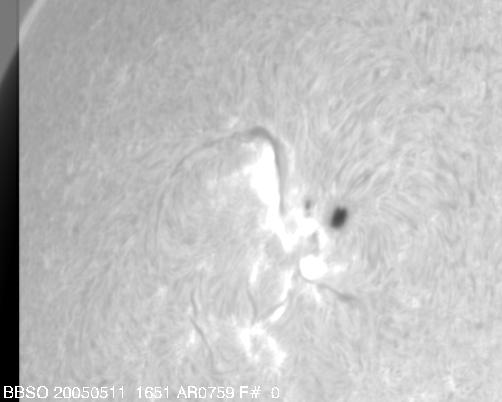

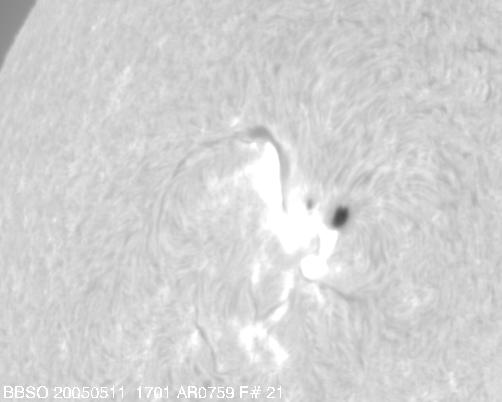

Below are an MPEG movie for this event, GOES flux plot and data file and several snapshots.


Automaticaly Generated on Wed May 11 20:13:07 2005
Please, send questions and comments to Vasyl Yurchyshyn
