Global H-alpha Network

SEL EVENT # 3670 in NOAA AR 1169
Date: 2011, Mar 14
Start Time 1930 UT; Max Time 1952 UT; End Time 1954 UT
Coordinates: N18W48
Flare type: X-ray flare and Optical flare observed in H-alpha
Additional: Several eruptive centers
GOES X-ray Class: M4.2 ( Integrated flux from start to end: 1.0E-02 )
Optical: 1N

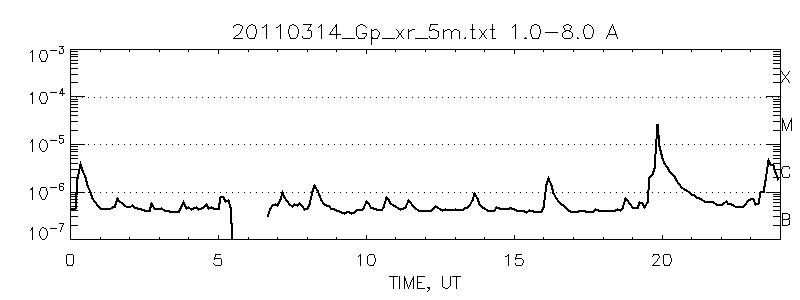

Below are an MPEG movie for this event, GOES flux plot and data file and several snapshots.


Automaticaly Generated on Mon Mar 14 20:01:28 2011
Please, send questions and comments to Vasyl Yurchyshyn
