Global H-alpha Network

SEL EVENT # 3130 in NOAA AR 1432
Date: 2012, Mar 14
Start Time 1508 UT; Max Time 1521 UT; End Time 1536 UT
Coordinates: N14E05
Flare type: X-ray flare and Optical flare observed in H-alpha
Additional:
GOES X-ray Class: M2.8 ( Integrated flux from start to end: 2.9E-02 )
Optical: 1N

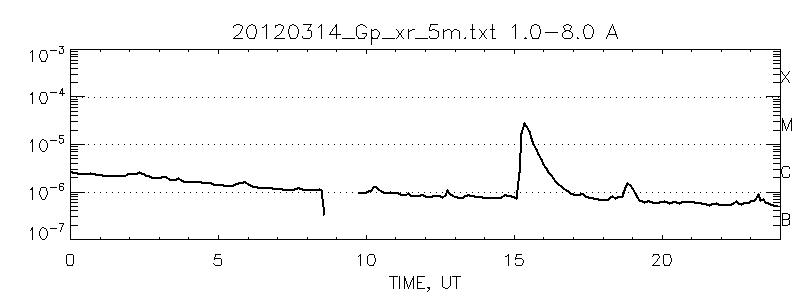

Below are an MPEG movie for this event, GOES flux plot and data file and several snapshots.


Automaticaly Generated on Wed Mar 14 20:01:41 2012
Please, send questions and comments to Vasyl Yurchyshyn
