Global H-alpha Network

SEL EVENT # 3740 in NOAA AR 1739
Date: 2013, May 10
Start Time 1630 UT; Max Time 1643 UT; End Time 1725 UT
Coordinates: N14W18
Flare type: X-ray flare and Optical flare observed in H-alpha
Additional:
GOES X-ray Class: C2.5 ( Integrated flux from start to end: 6.9E-03 )
Optical: 1F

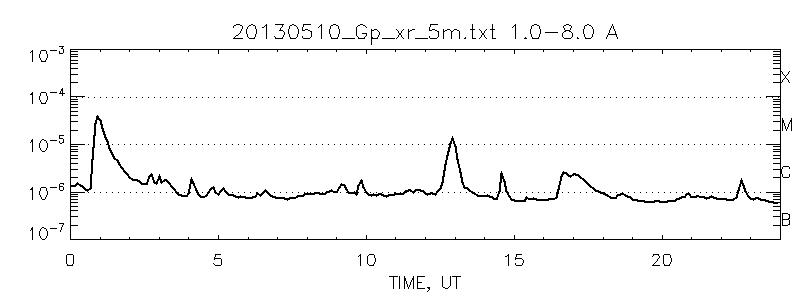

Below are an MPEG movie for this event, GOES flux plot and data file and several snapshots.


Automaticaly Generated on Fri May 10 20:01:47 2013
Please, send questions and comments to Vasyl Yurchyshyn
