Global H-alpha Network

SEL EVENT # 6940 in NOAA AR 1756
Date: 2013, May 22
Start Time 1946 UT; Max Time 2009 UT; End Time 2017 UT
Coordinates: S20E48
Flare type: X-ray flare and Optical flare observed in H-alpha
Additional:
GOES X-ray Class: C2.4 ( Integrated flux from start to end: 4.0E-03 )
Optical: SF

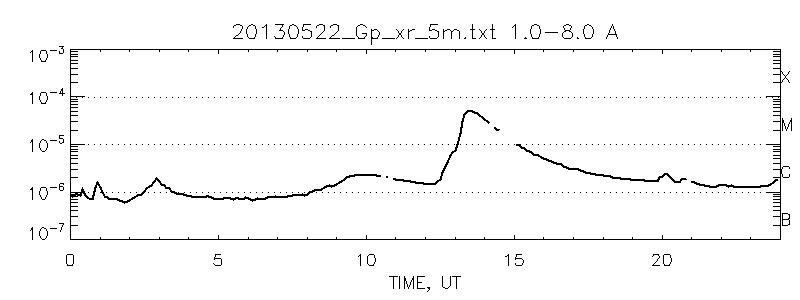

Below are an MPEG movie for this event, GOES flux plot and data file and several snapshots.


Automaticaly Generated on Wed May 22 20:01:23 2013
Please, send questions and comments to Vasyl Yurchyshyn
