Global H-alpha Network

SEL EVENT # 7180 in NOAA AR
Date: 2013, May 23
Start Time 1820 UT; Max Time 1827 UT; End Time 1839 UT
Coordinates: S19E36
Flare type: X-ray flare and Optical flare observed in H-alpha
Additional: Several eruptive centers
GOES X-ray Class: C1.8 ( Integrated flux from start to end: 1.7E-03 )
Optical: 1F

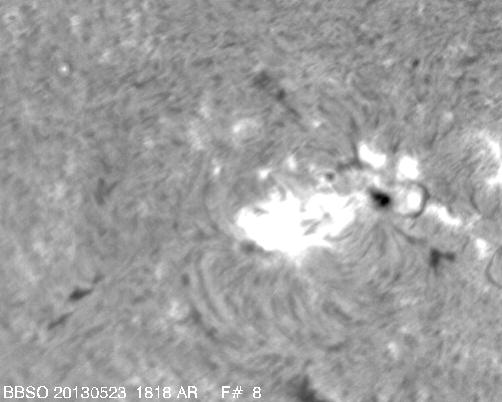

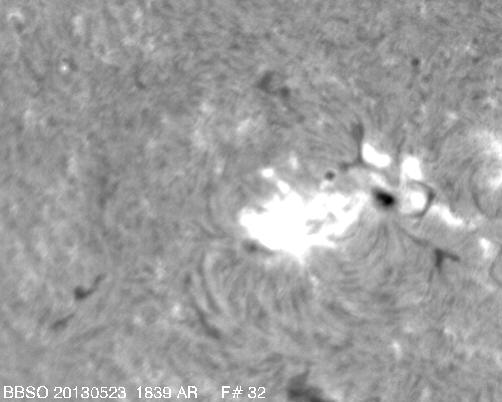

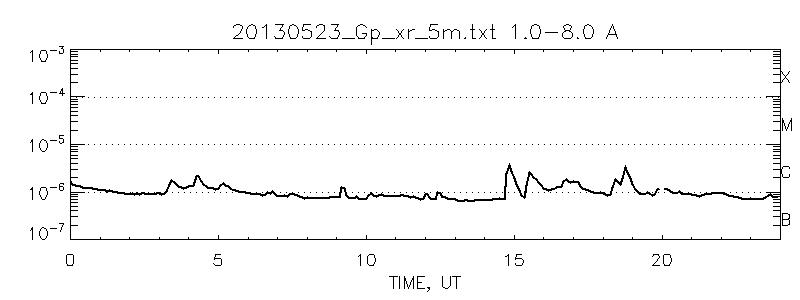

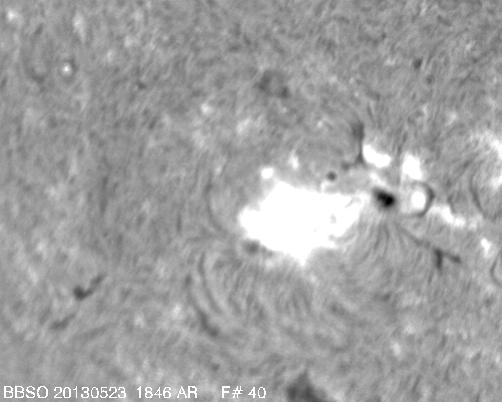

Below are an MPEG movie for this event, GOES flux plot and data file and several snapshots.


Automaticaly Generated on Thu May 23 20:03:26 2013
Please, send questions and comments to Vasyl Yurchyshyn
