Global H-alpha Network

SEL EVENT # 9330 in NOAA AR 1875
Date: 2013, Oct 21
Start Time 2056 UT; Max Time 2100 UT; End Time 2107 UT
Coordinates: N08E19
Flare type: X-ray flare and Optical flare observed in H-alpha
Additional: Several eruptive centers
GOES X-ray Class: C1.5 ( Integrated flux from start to end: 7.3E-04 )
Optical: SF

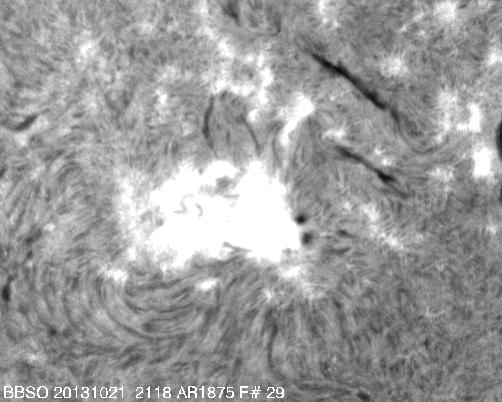

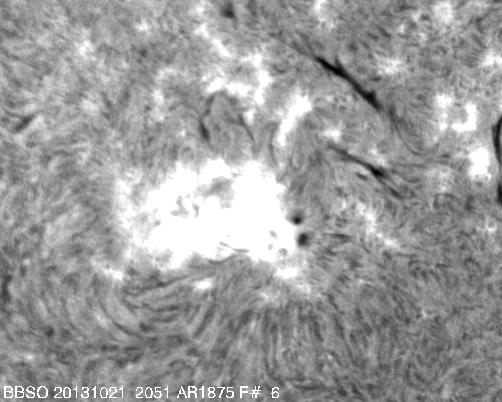

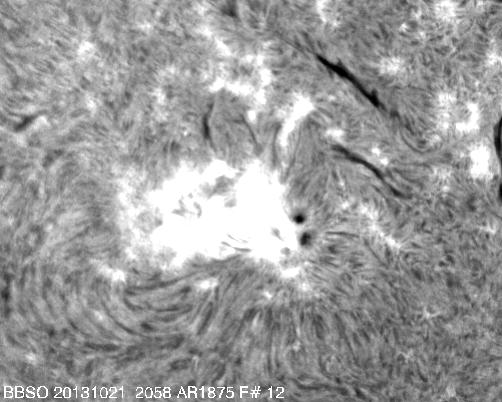

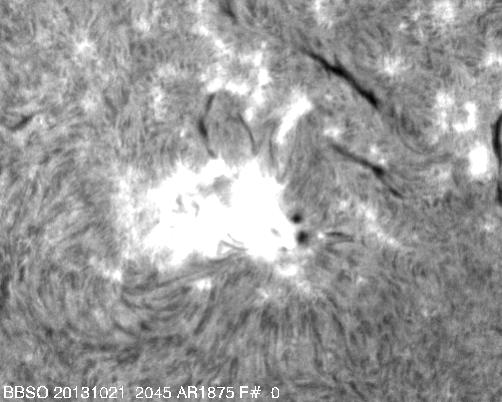

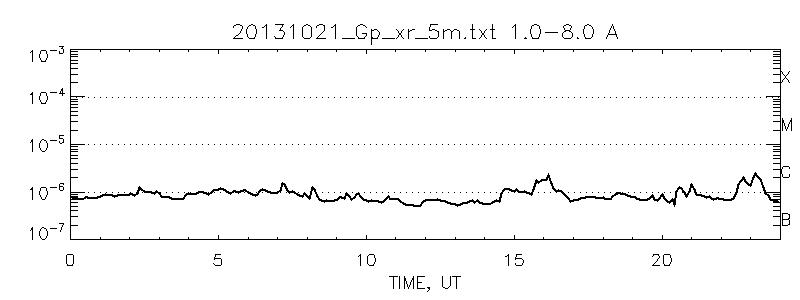

Below are an MPEG movie for this event, GOES flux plot and data file and several snapshots.


Automaticaly Generated on Mon Oct 21 20:02:08 2013
Please, send questions and comments to Vasyl Yurchyshyn
