Global H-alpha Network

SEL EVENT # 890 in NOAA AR 1959
Date: 2014, Jan 18
Start Time 1932 UT; Max Time 1942 UT; End Time 1959 UT
Coordinates: S22E81
Flare type: X-ray flare and Optical flare observed in H-alpha
Additional:
GOES X-ray Class: C2.3 ( Integrated flux from start to end: 2.7E-03 )
Optical: SF

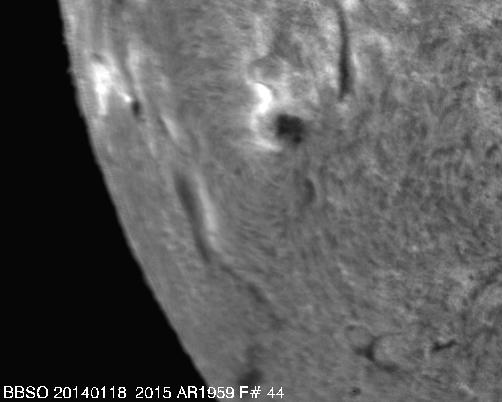

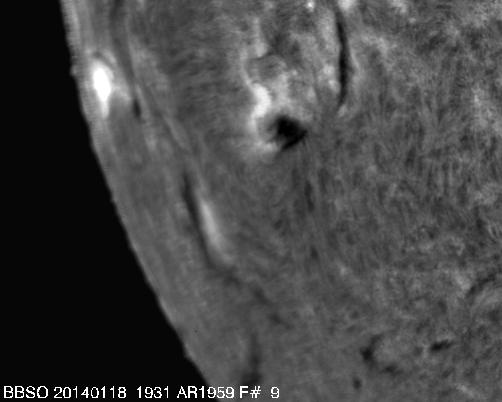

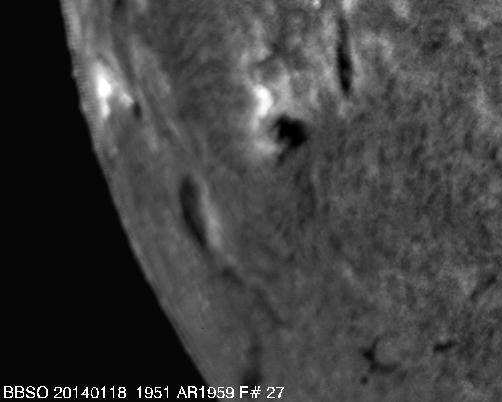

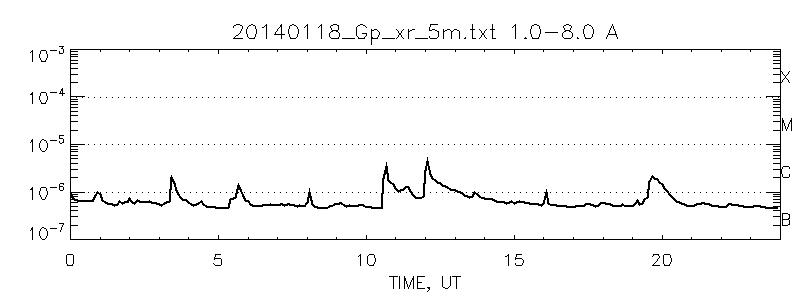

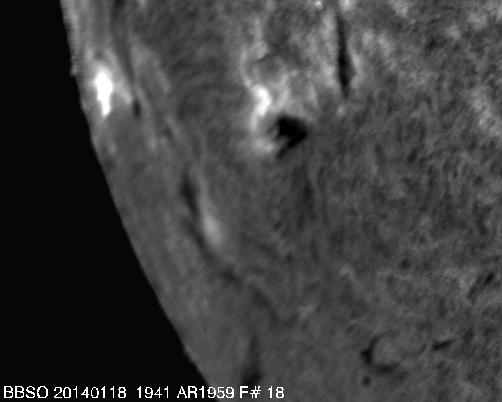

Below are an MPEG movie for this event, GOES flux plot and data file and several snapshots.


Automaticaly Generated on Sat Jan 18 20:01:01 2014
Please, send questions and comments to Vasyl Yurchyshyn
