Global H-alpha Network

SEL EVENT # 4390 in NOAA AR 1967
Date: 2014, Feb 03
Start Time 1928 UT; Max Time 1937 UT; End Time 1948 UT
Coordinates: S10W12
Flare type: X-ray flare and Optical flare observed in H-alpha
Additional: Several eruptive centers
GOES X-ray Class: C6.9 ( Integrated flux from start to end: 6.6E-03 )
Optical: SF

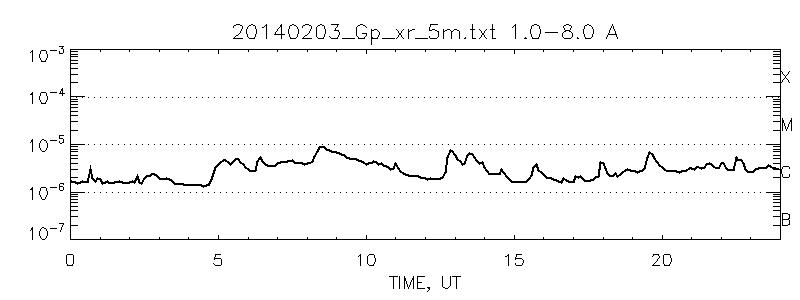

Below are an MPEG movie for this event, GOES flux plot and data file and several snapshots.


Automaticaly Generated on Mon Feb 3 20:02:19 2014
Please, send questions and comments to Vasyl Yurchyshyn
