Global H-alpha Network

SEL EVENT # 6490 in NOAA AR 2014
Date: 2014, Mar 19
Start Time 1939 UT; Max Time 1950 UT; End Time 1955 UT
Coordinates: S12E76
Flare type: X-ray flare and Optical flare observed in H-alpha
Additional:
GOES X-ray Class: C3.1 ( Integrated flux from start to end: 2.2E-03 )
Optical: SF

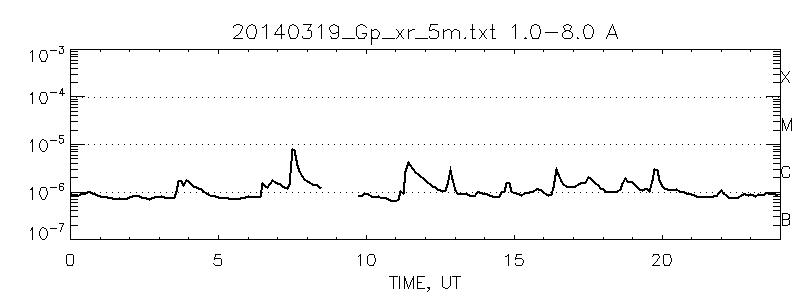

Below are an MPEG movie for this event, GOES flux plot and data file and several snapshots.


Automaticaly Generated on Wed Mar 19 20:02:30 2014
Please, send questions and comments to Vasyl Yurchyshyn
