Global H-alpha Network

SEL EVENT # 8350 in NOAA AR 2017
Date: 2014, Mar 28
Start Time 1904 UT; Max Time 1918 UT; End Time 1927 UT
Coordinates: N11W21
Flare type: X-ray flare and Optical flare observed in H-alpha
Additional: One or more brilliant points
GOES X-ray Class: M2.0 ( Integrated flux from start to end: 1.3E-02 )
Optical: SN

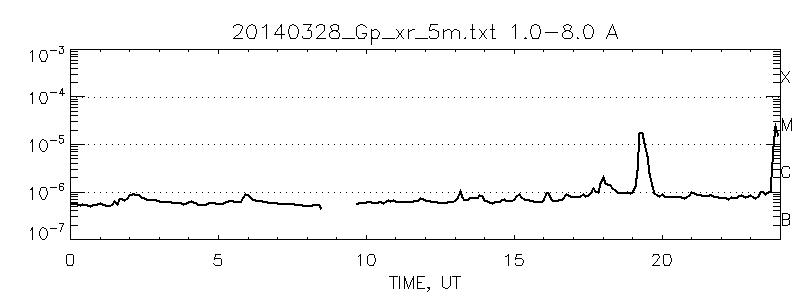

Below are an MPEG movie for this event, GOES flux plot and data file and several snapshots.


Automaticaly Generated on Fri Mar 28 20:04:39 2014
Please, send questions and comments to Vasyl Yurchyshyn
