Global H-alpha Network

SEL EVENT # 7550 in NOAA AR 2056
Date: 2014, May 10
Start Time 1831 UT; Max Time 1846 UT; End Time 1853 UT
Coordinates: N05E23
Flare type: X-ray flare and Optical flare observed in H-alpha
Additional:
GOES X-ray Class: C1.8 ( Integrated flux from start to end: 1.8E-03 )
Optical: SF

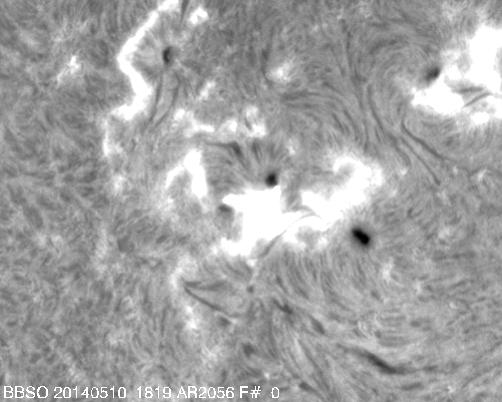

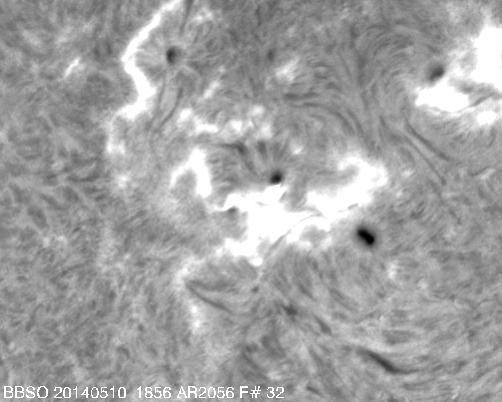

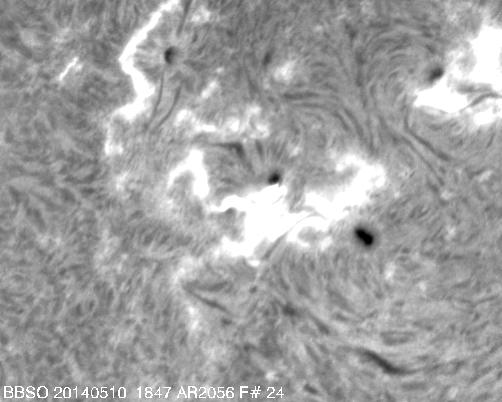

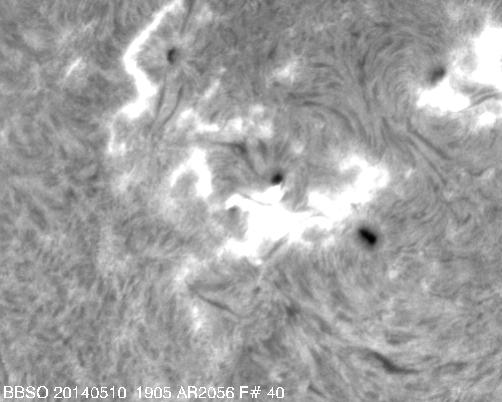

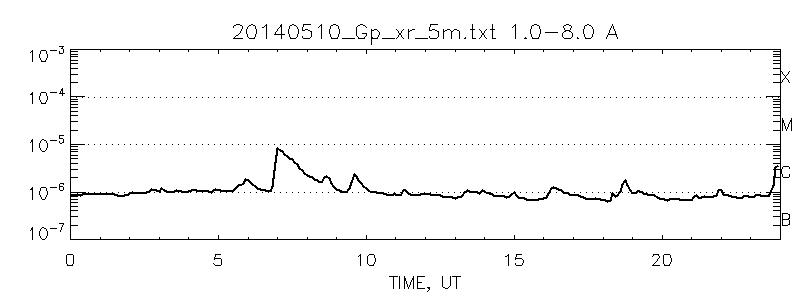

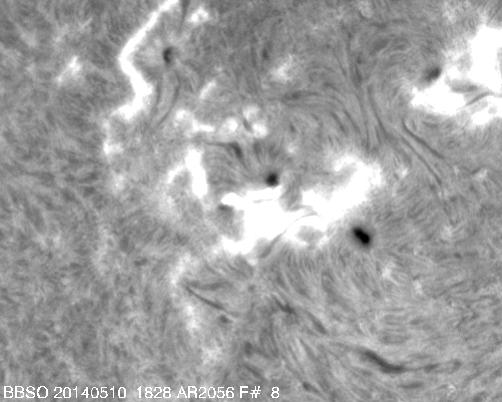

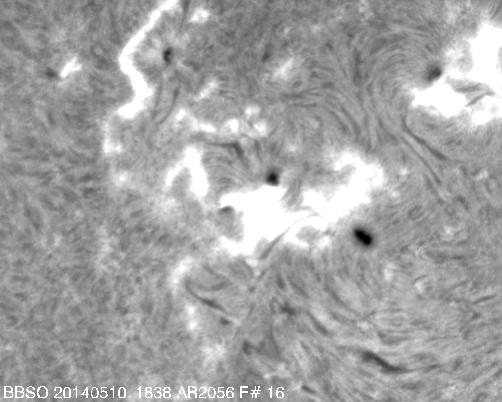

Below are an MPEG movie for this event, GOES flux plot and data file and several snapshots.


Automaticaly Generated on Sat May 10 20:01:50 2014
Please, send questions and comments to Vasyl Yurchyshyn
