Global H-alpha Network

SEL EVENT # 5070 in NOAA AR 2087
Date: 2014, Jun 18
Start Time 1620 UT; Max Time 1625 UT; End Time 1628 UT
Coordinates: S16W34
Flare type: X-ray flare and Optical flare observed in H-alpha
Additional: Several eruptive centers
GOES X-ray Class: C1.8 ( Integrated flux from start to end: 5.8E-04 )
Optical: SF

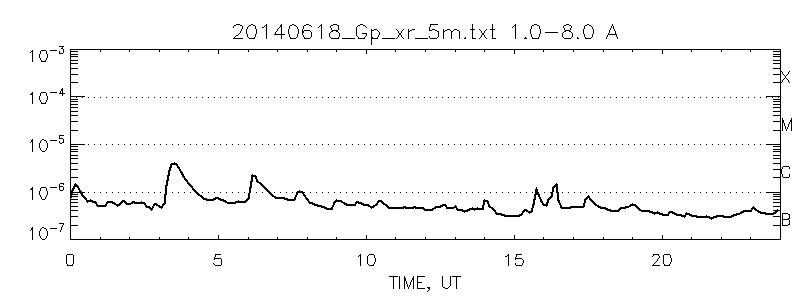

Below are an MPEG movie for this event, GOES flux plot and data file and several snapshots.


Automaticaly Generated on Wed Jun 18 20:01:32 2014
