Global H-alpha Network

SEL EVENT # 4800 in NOAA AR 2192
Date: 2014, Oct 22
Start Time 1402 UT; Max Time 1428 UT; End Time 1450 UT
Coordinates: S14E13
Flare type: X-ray flare and Optical flare observed in H-alpha
Additional: Parallel ribbon
GOES X-ray Class: X1.6 ( Integrated flux from start to end: 3.4E-01 )
Optical: 2B

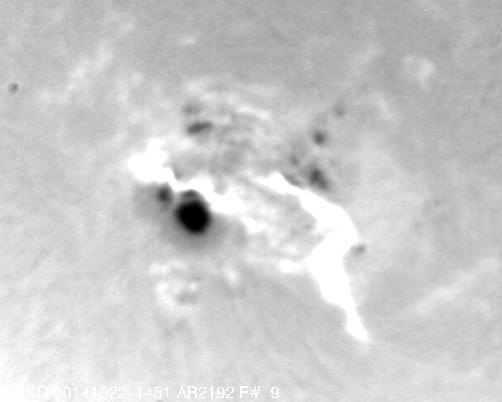

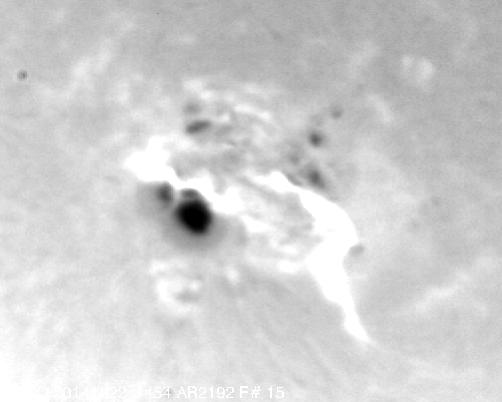

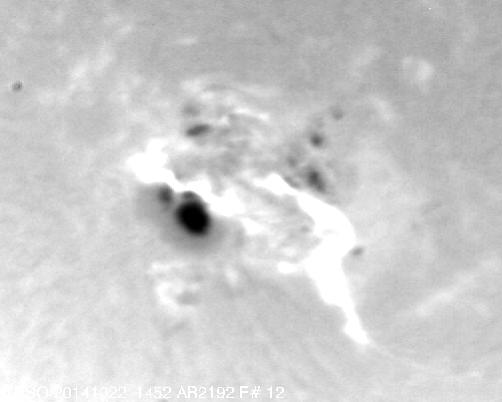

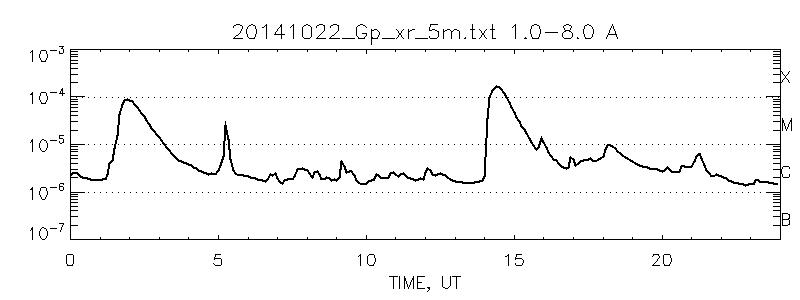

Below are an MPEG movie for this event, GOES flux plot and data file and several snapshots.


Automaticaly Generated on Wed Oct 22 20:00:34 2014
Please, send questions and comments to Vasyl Yurchyshyn
