Global H-alpha Network

SEL EVENT # 5130 in NOAA AR 2192
Date: 2014, Oct 23
Start Time 1911 UT; Max Time 1915 UT; End Time 1918 UT
Coordinates: S21E05
Flare type: X-ray flare and Optical flare observed in H-alpha
Additional: Several eruptive centers
GOES X-ray Class: C3.3 ( Integrated flux from start to end: 8.8E-04 )
Optical: SN

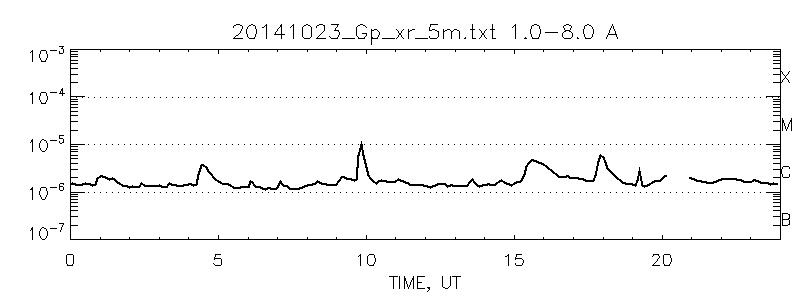

Below are an MPEG movie for this event, GOES flux plot and data file and several snapshots.


Automaticaly Generated on Thu Oct 23 20:03:25 2014
Please, send questions and comments to Vasyl Yurchyshyn
