Global H-alpha Network

SEL EVENT # 50 in NOAA AR 2205
Date: 2014, Nov 10
Start Time 1557 UT; Max Time 1618 UT; End Time 1633 UT
Coordinates: N16W04
Flare type: X-ray flare and Optical flare observed in H-alpha
Additional: Several eruptive centers
GOES X-ray Class: C1.8 ( Integrated flux from start to end: 3.1E-03 )
Optical: SF

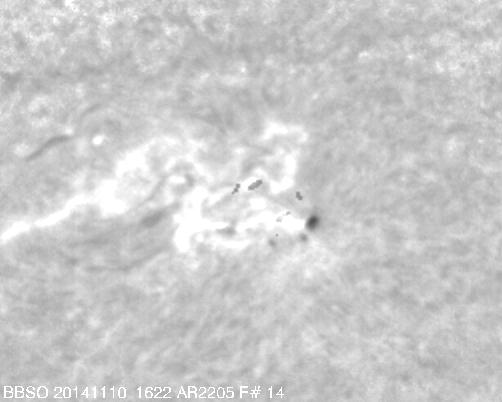

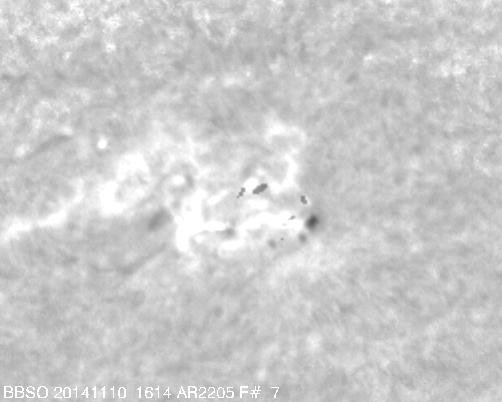

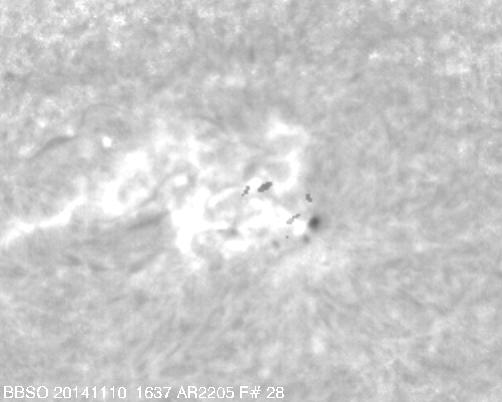

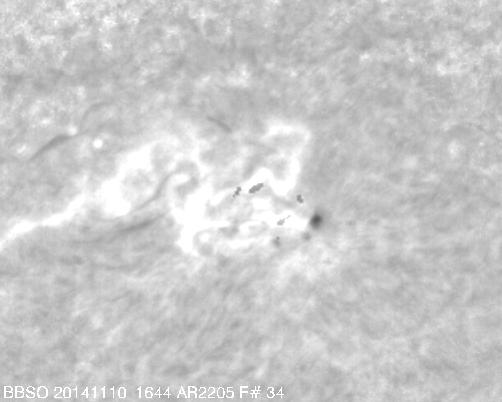

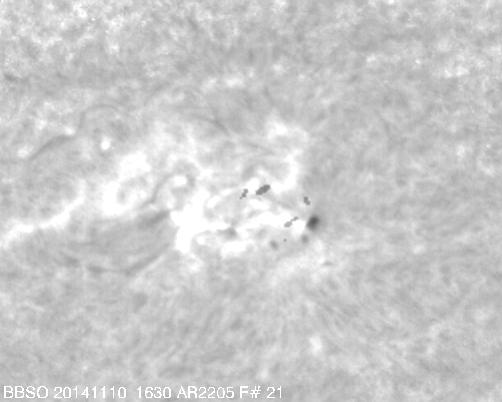

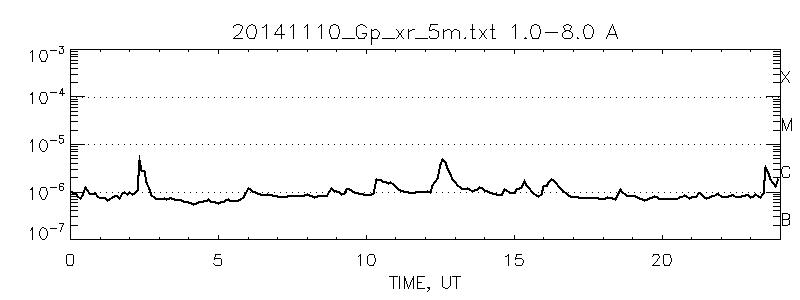

Below are an MPEG movie for this event, GOES flux plot and data file and several snapshots.


Automaticaly Generated on Mon Nov 10 20:01:37 2014
Please, send questions and comments to Vasyl Yurchyshyn
