DATE: 2010/08/23
FILTER: Ha-0.75; Ha LC; Ha+0.75A
OBS TIME: 17:29:12.2 - 19:31:50.9 UT
TARGET: AR1100; jets in plage area
CADENCE: 8 sec
HAVE THIS DATA SET BEEN RECONSTRUCTED? yes, yurchyshyn
SEEING, DATA QUALITY: seeing seems good, but "choppy". data has interference pattern; processed w/ wrong flat field; if needed can be used for science after re-processig w/ correct FF
OBSERVER: rjf, abramenko
OPTIONS: ponting info:
coord of the FOV 387"-463" according to Hinode data; NST coords: 462"-470" (NST x-coord should be corrected
NST coords after 1832UT 472"-380" (center of the filament)

Comments by Scientist:

After Reconstruction Info:

Reconstructed Images Samples:

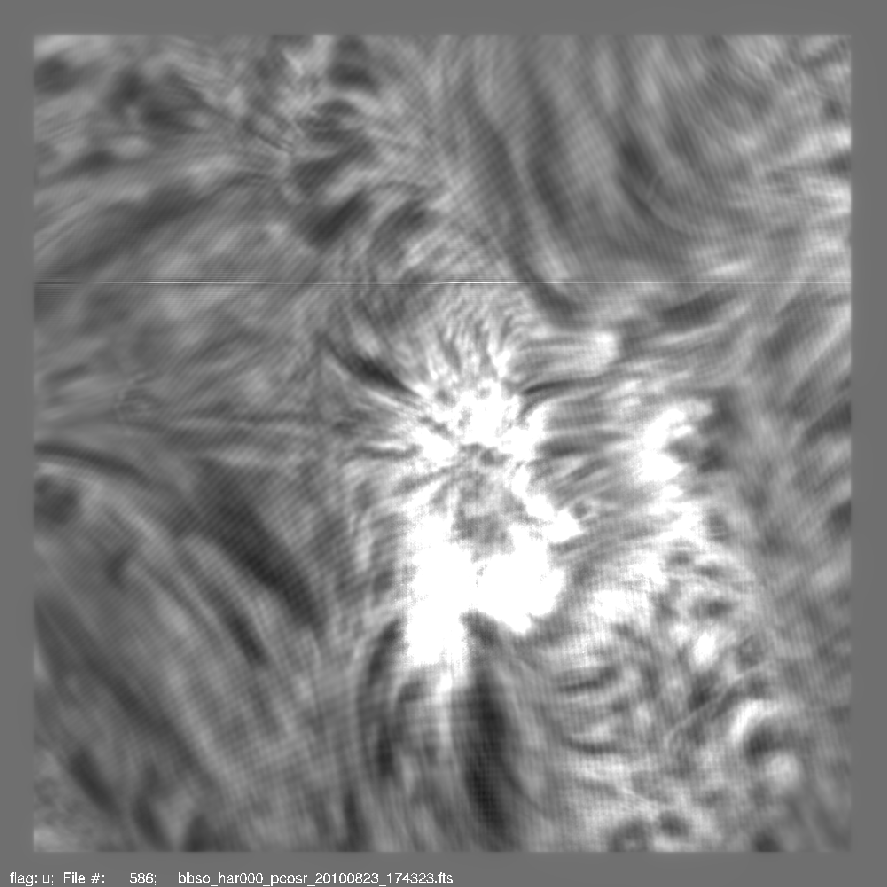

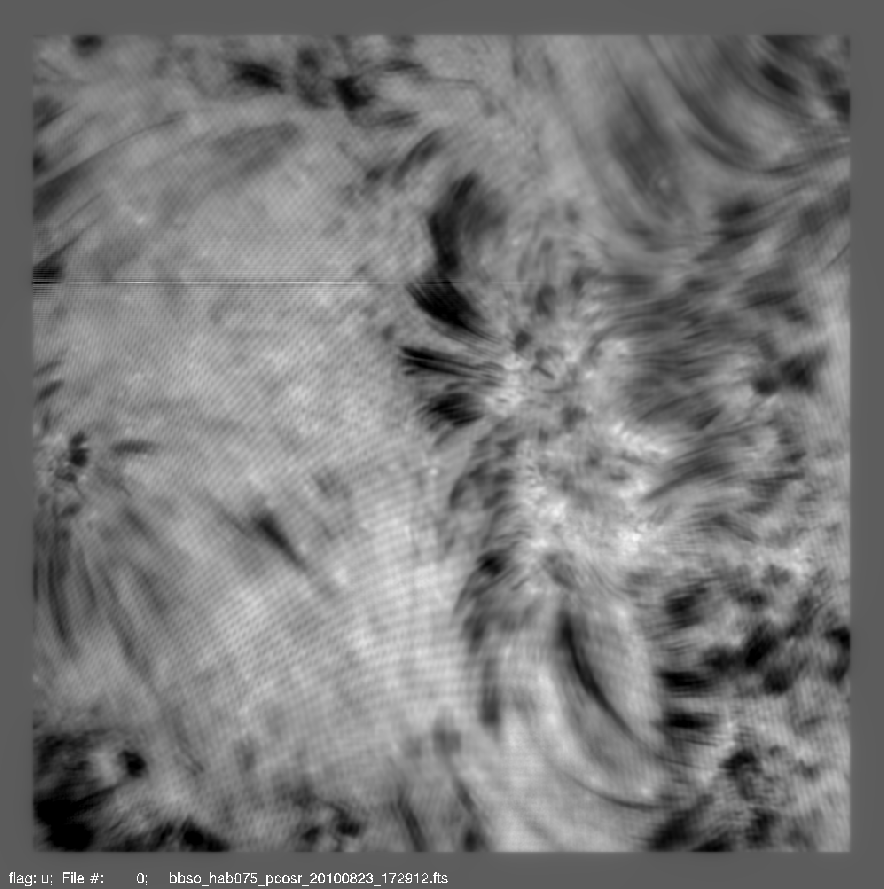

Image Caption: Plage Region at Ha-0.75A (left) and Ha line center (right)

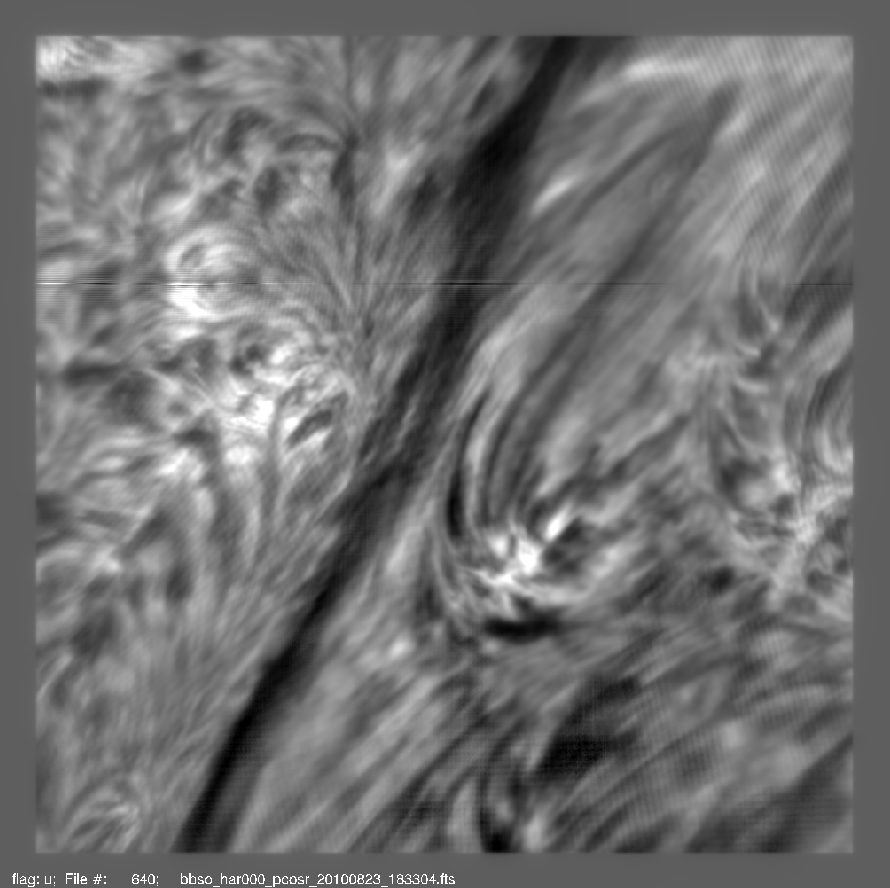

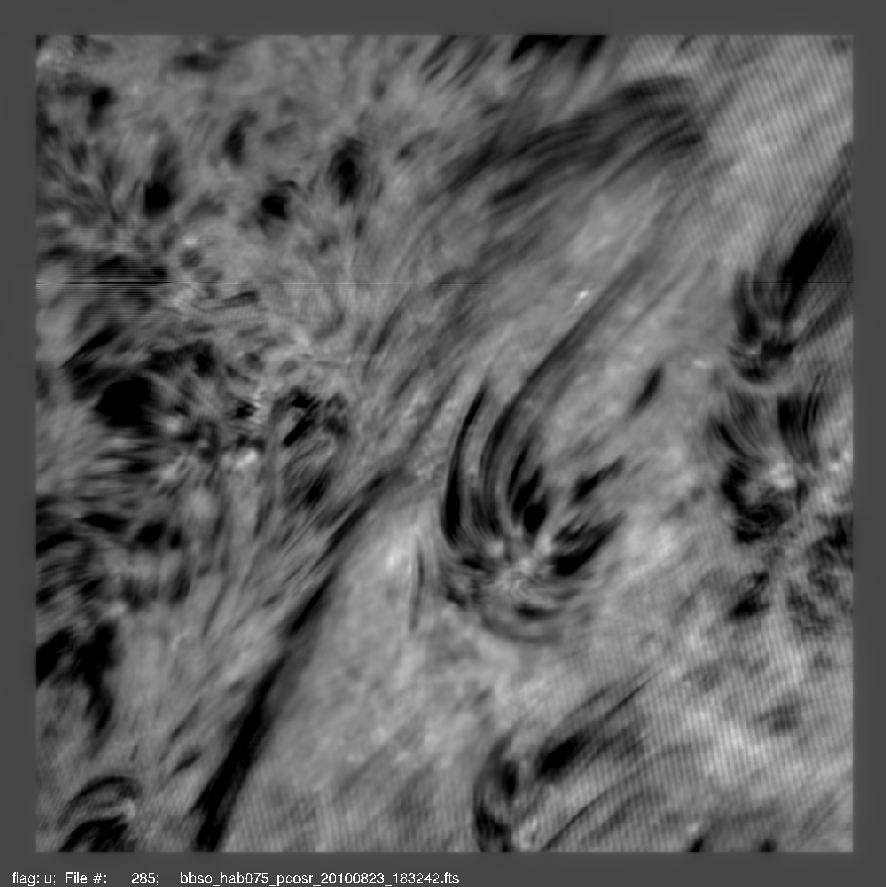

Image Caption: Filament at Ha-0.75A (left) and Ha line center (right)
