Halo CME on 20021025 - SOHO/LASCO C3 Data |
COMMENTS: The CME took off from AR 0162 at N35W10. If this CME hits the earth by its front edge,
there are strong chances that it will produce an intense geomagnetic storm.
The CME missed the earth, therefore, no real measurements can be compared with the predictions.
- CME's Source Region is NOAA AR 0162 ; P0= 25.446328; Day of Year # 298
- CME Appeared at 6 Solar Radii on 20021025 at 1842 UT
- CME Arrived at 20 Solar Radii on 20021025 at 2130 UT

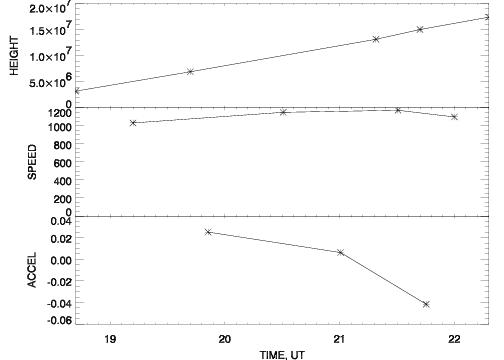

- CME's Projected Speed at 20R: 1174 km/sec
- Estimated Travel Time is 2.06427 +/- 0.25 days
- Estimated Time of Arrival is 20021027 at 2303 UT ( COMMENTS: )1
- Estimated Speed of Solar Wind at 1AU is 508 km/sec (km/sec)
- Estimated Direction of the Bz at the
Leading Edge of the Magnetic Cloud is SOUTHWARD ()
- Estimated Magnitude of the hourly averaged Bz at the
Leading Edge of a Magnetic Cloud is -14...-28 nT (nT)
- Estimated Change of the Dst index is -130...-196nT (nT )
- Estimated Level of the Geomagnetic Storm is INTENSE...INTENSE()
NONE > -30 > WEAK > -50 > MODERATE > -100 > INTENSE
1Numbers in red are estimates. Numbers in parenthesis (if any) are actual measured values
*These estimates should be compared to the observed 1 hour averaged ACE and Dst values
Real Time Dst from World Data Center for Geomagnetism, Kyoto
Predicted Dst from Nonlinear Dynamics and Space Physics group
Real Time ACE data
Today's Space Weather
SOHO/LASCO C3 |
SOHO/LASCO C3 |
SOHO/LASCO C3 |
 |
 |
 |
Full Disk Halpha |
Full Disk SOHO/MDI |
Full Disk SOHO/EIT195 |
 |
 |
 |
Active Region Halpha |
Active Region SOHO/MDI |
Active Region /EIT195 |
 |
 |
 |
BBSO Halpha and SOHO MDI/EIT images are courtesy of Active Region Monitor
Automaticaly Generated on Fri Oct 25 16:20:34 2002
Please, send questions and comments to Vasyl Yurchyshyn
