Halo CME on 20040408 - SOHO/LASCO C3 Data
COMMENTS:
CME's Source Region is
NOAA AR0588
; P
0
=
-26.274866
; Day of Year #
99
CME Appeared at 6 Solar Radii on
20040408 at 1118 UT
CME Arrived at 20 Solar Radii on
20040408 at 1430 UT
CME's Projected Speed at 20R:
850
km/sec
See more
info
on the event
Estimated Travel Time is
2.39464
+/- 0.25 days
Estimated Time of Arrival is
20040410 at 2358
()
1
Estimated Speed of Solar Wind at 1AU is
600
km/sec (km/sec)
Estimated Direction of the Bz in the Ejecta is
NORTHWARD
()
Estimated Magnitude of the hourly averaged Bz in the Ejecta is
+9...+23
nT (nT)
Estimated Change of the Dst index is
-90...-156nT
(nT)
Estimated Level of the Geomagnetic Storm is
MODERATE...INTENSE
()
NONE > -30 > WEAK > -50 > MODERATE > -100 > INTENSE
1
Numbers in red are estimates. Numbers in parenthesis (if any) are actual measured values
*
These estimates should be compared to the observed 1 hour averaged ACE and Dst values
Real Time Dst from World Data Center for Geomagnetism, Kyoto
Predicted Dst from Nonlinear Dynamics and Space Physics group
Real Time ACE data
Today's Space Weather

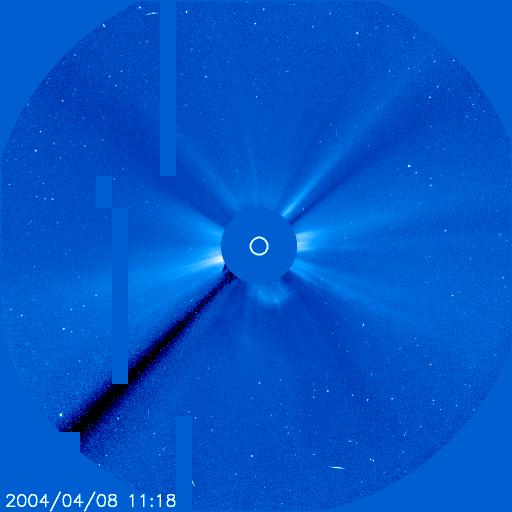

SOHO/LASCO C3

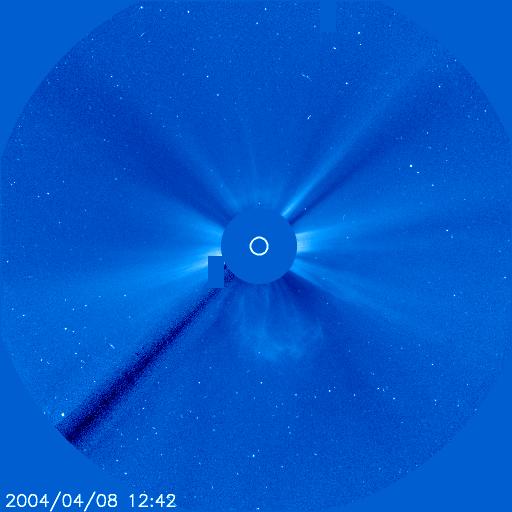

SOHO/LASCO C3

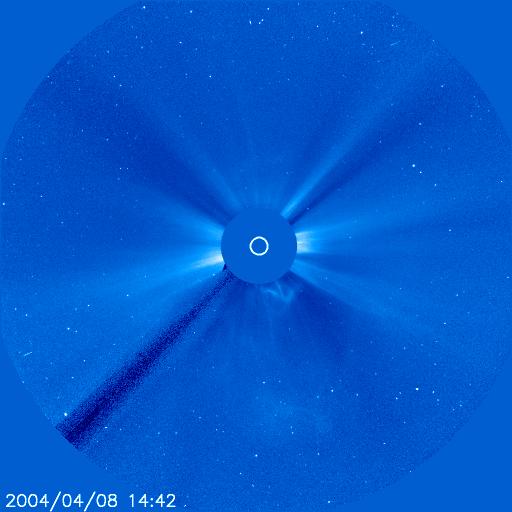

SOHO/LASCO C3
Full Disk Halpha

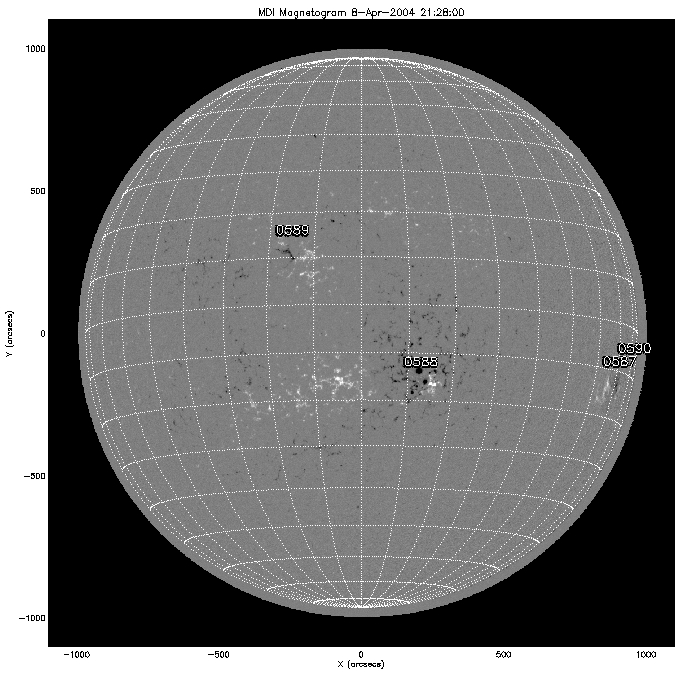

Full Disk SOHO/MDI

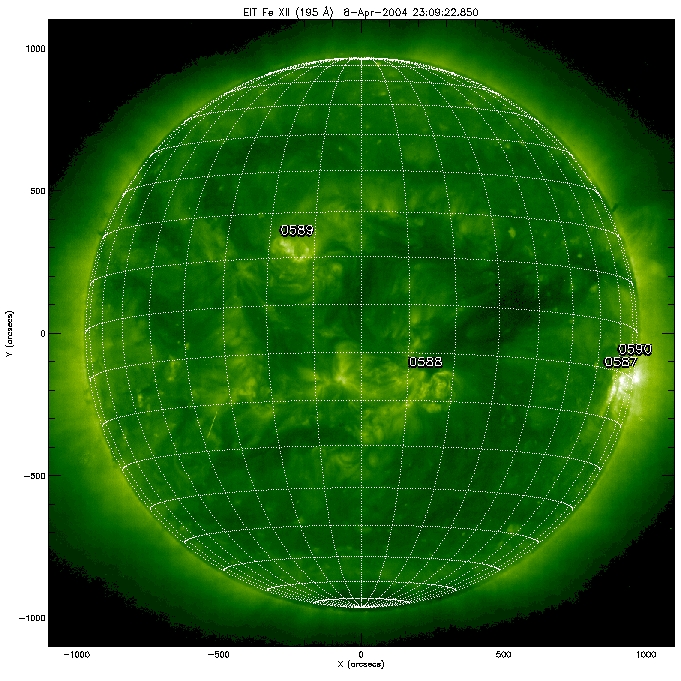

Full Disk SOHO/EIT195
Active Region Halpha

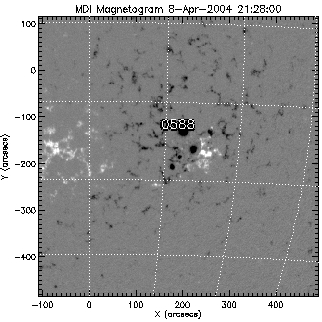

Active Region SOHO/MDI

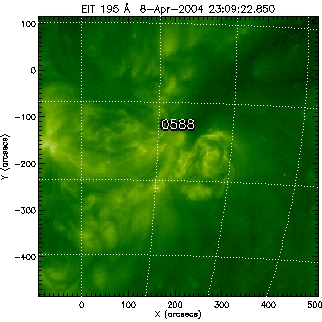

Active Region /EIT195
Images are courtesy of
Active Region Monitor
Automaticaly Generated on Sat Apr 9 18:30:00 2004
